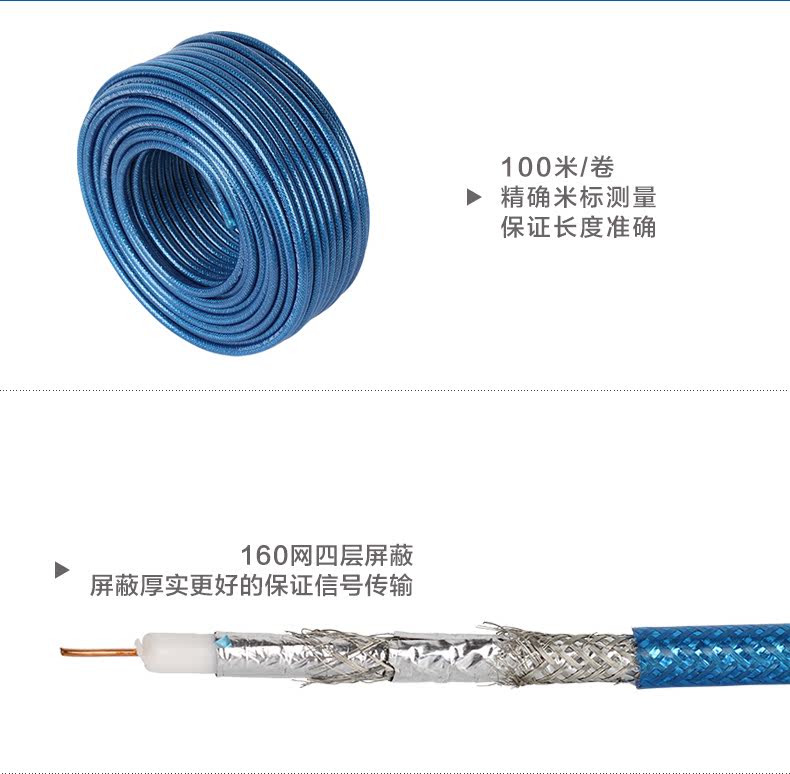

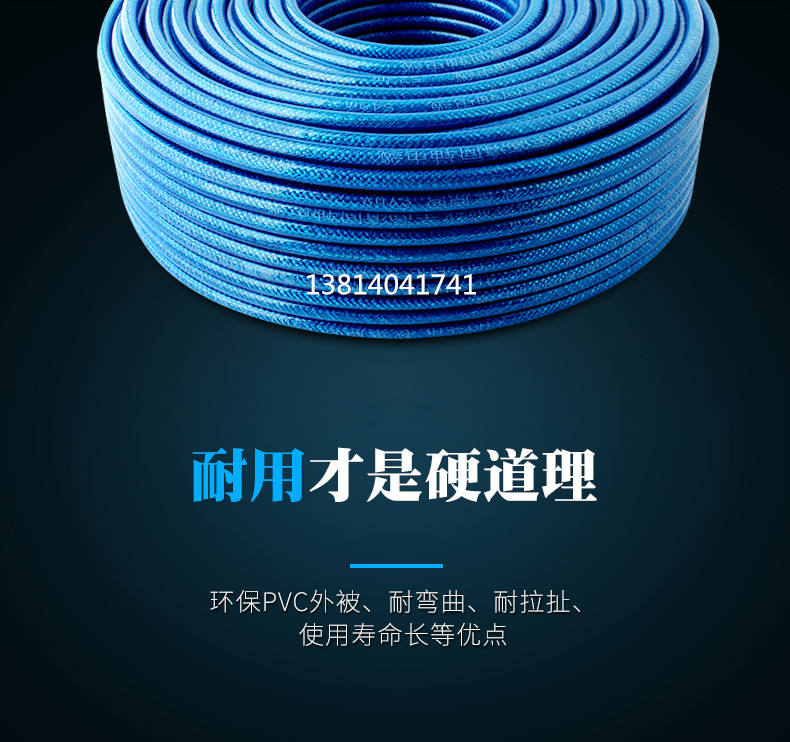

Home improvement high-definition cable TV line closed line pure copper 75-5 four shielded 160 network set-top box satellite TV line
|Model||HD TV Cable|
|Color Classification||[Classic White] -96 Mesh-double Shielded-100 Meters,[Transparent Blue] -96net-double Shielded -100m,[Classic White] -128net-4 Shield -100m,[Transparent Blue] -128net-4 Shield -100m,[Classic White] -128net-4 Shield-10m,[Transparent Blue] -128net-4 Shield-10m|
Ordinary cable TV uses 75 ohms, or two shielded wires, or four shielded wires?
I would like to ask heroes: "Four shielded 4P closed circuit 128 network 75-5 digital TV ...

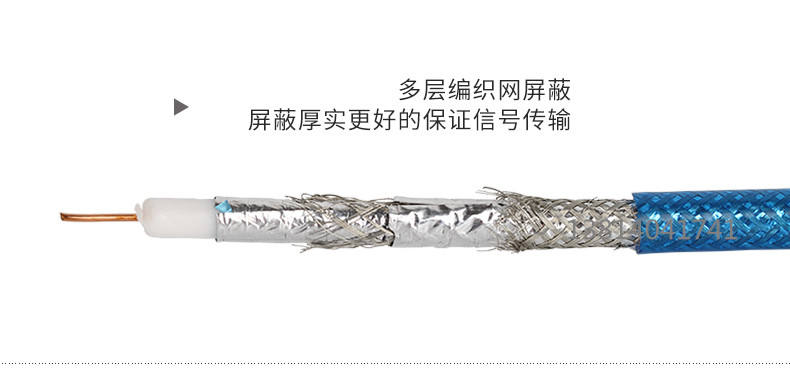

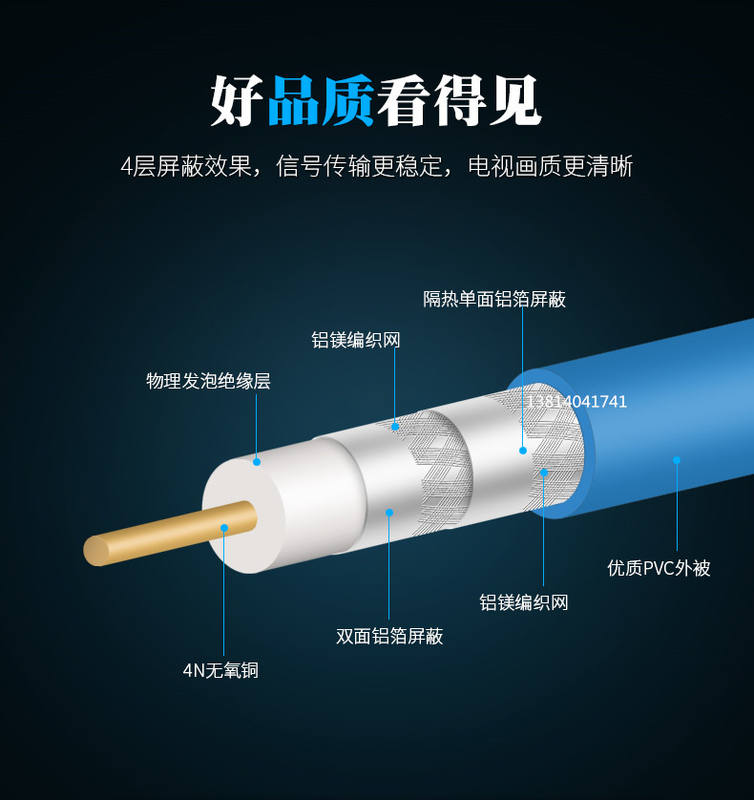

Answer: Four shields 4P: 2 layers of aluminum foil + 2 layers of tinned copper wire braided mesh 128 mesh: 128 mesh braided copper wire 160 mesh: 160 braided copper wire 75-5: characteristic impedance 75, insulation outer diameter 5mm
Is it necessary to use a four-shield high-definition digital TV cable for cable TV?
Answer: Four shielding is unnecessary. But the better the shielding, the less the signal attenuation. If your front end has lost a lot, no matter how good the back end is, it is useless. The shielding is necessary.

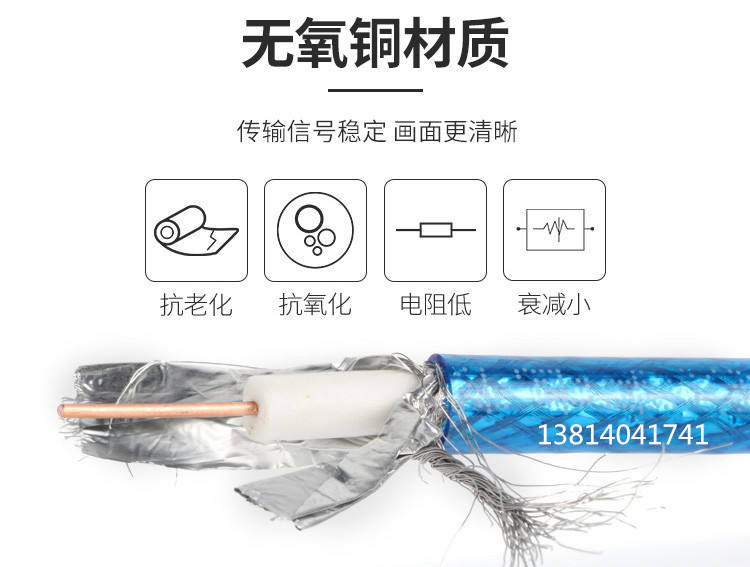

Four-shielded 75-5 coaxial cable 96 mesh oxygen-free copper medium 96 mesh oxygen-free ...

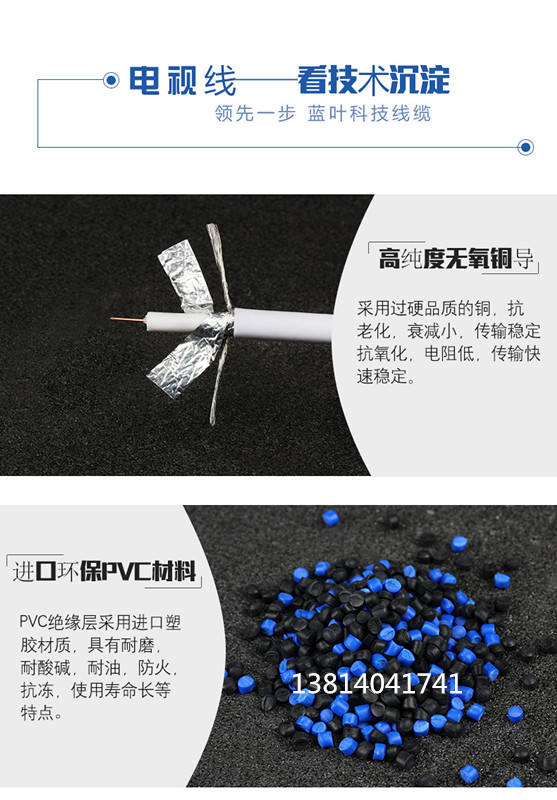

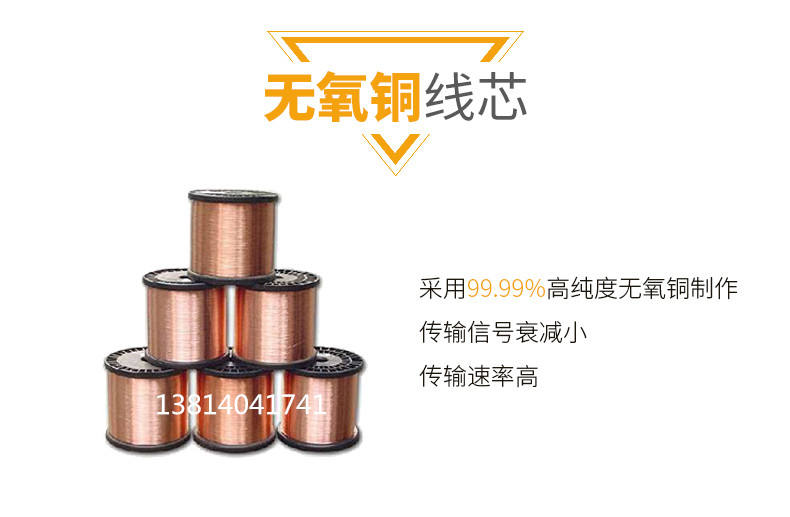

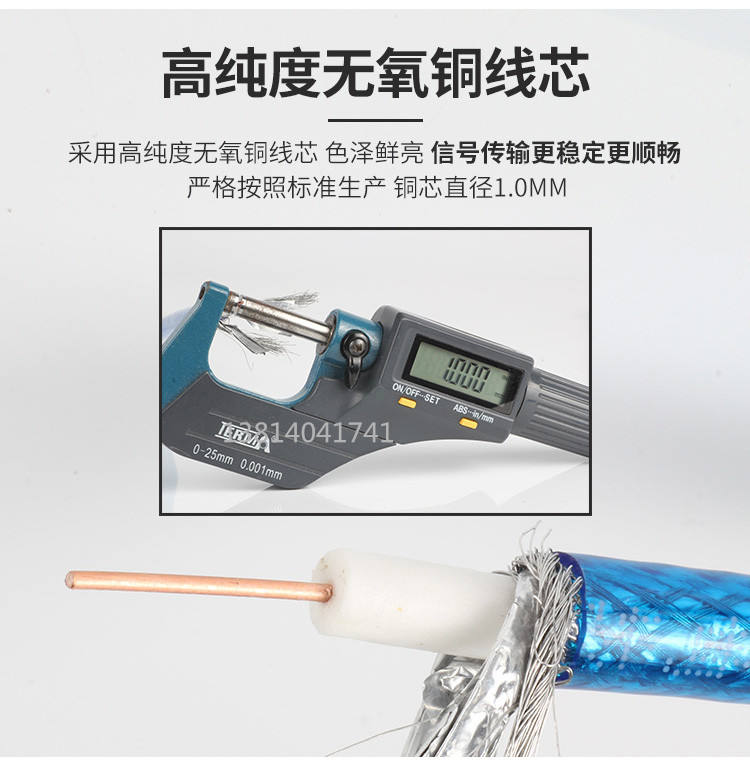

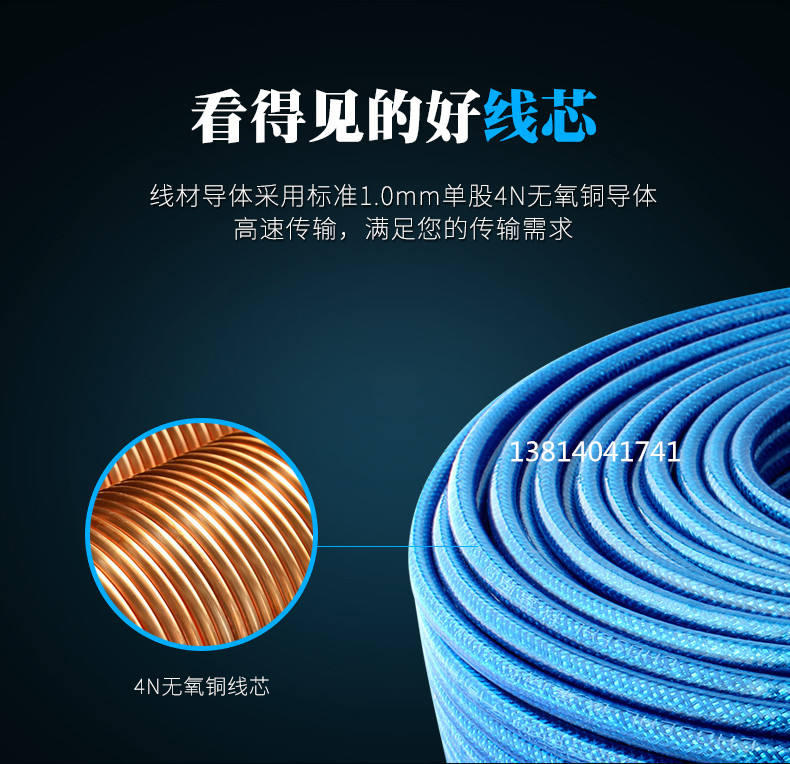

Answer: 96 mesh may be a requirement for the shielding network of the wire. Of course, oxygen-free copper is the requirement for the core of the wire.
What is the difference between 64 network, 96 network, 128 network 4P in the TV line?

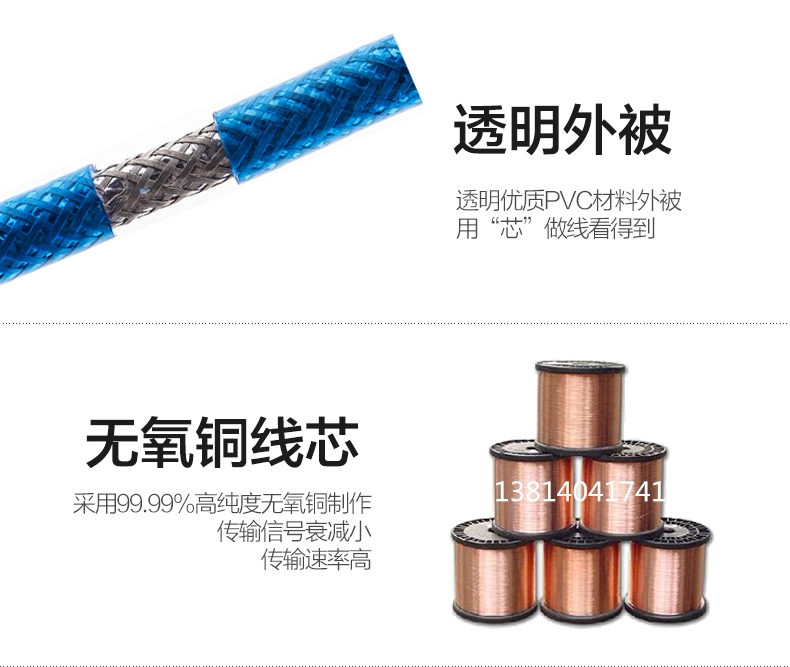

The single-screen closed route means that the outer shielding layer is only a layer of foil and a layer of net, and the 4P dual-screen is a layer of 2 layers of foil and 2 layers of net. How many nets refer to the outer mesh of the east ...
75-5 cable uses 64 mesh four shielded cable, what does four shield mean?
Answer: Electrical shielding, magnetic shielding, electromagnetic shielding, radio shielding, and the above shielding measures are used to better prevent signal leakage.
How to connect the shielding layer of cable TV line ???
A good shielded wire is pressed in the buckle, you can make a circle on the feet of the buckle, then connect the core wire, and tighten the joint cover!
Philips HD Quad Shielded Digital TV Cable Model SWV5110 / 93
when the installation shell application store, expand resources, free to see a variety of live on-demand!
Four layers of shielded cable TV cable, which layer of metal mesh to use
Making a box with metal and then grounding the box can play the role of electromagnetic shielding. Under the guidance of this concept, the result is lost ...
Four layers of shielded cable TV cable, which layer of metal network is used?
In the middle and the four layers of shielding are playing a role, we can not say which layer is used and which layer is not used. These four layers of shielding network, if you want to connect well at the joint, you must use and four ...
